Ultrasonic Thickness Gauge
Review: 5 - "A masterpiece of literature" by , written on May 4, 2006
I really enjoyed this book. It captures the essential challenge people face as they try make sense of their lives and grow to adulthood.
REED INSTRUMENTS

Ultrasonic Thickness Gauge

Add Your Review
Digital, Ultrasound, 0.03" - 15.7" (0.65 mm - 400.0 mm)

STOCK ITEM: This means item is usually in stock. If it happens to be out of stock, it wil arrive shortly and shipped with a short delay.

SPECIAL ORDER: This means this item is currently not stocked. You can still purchase the item and we will get back to you with an estimated time of delivery.

Click HERE to enquire about current stock levels on this product.

Please note: due to ongoing COVID-19 supply chain slowdowns, there can be a delay in shipping your item, even if in stock.
$1,098.90
  • Able to gauge thickness measurement without requiring access to both sides of the test piece
  • Determines sample thickness by measuring the amount of time it takes for sound to traverse from the transducer through the material to the back end of a part and back
  • Calculates the data based on the speed of the sound through the tested sample
  • Capable of performing measurements on a wide range of material including metals, plastic, ceramics, composites, epoxies, glass, and other ultrasonic conductive materials
  • Zero function and sound velocity calibration
  • Two-point calibration
  • Coupling status indicator
  • Can be easily deployed, does not require laboratory conditions

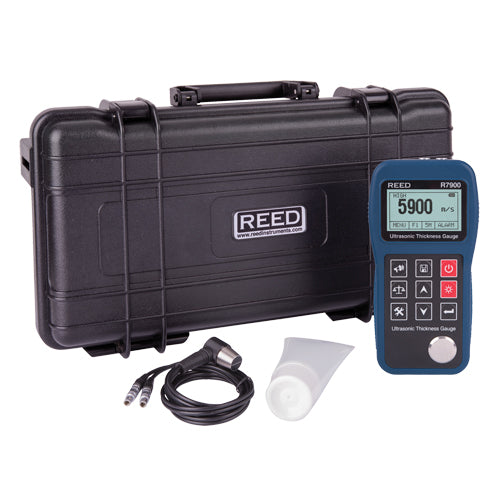

  • Includes ultrasonic couplant gel, probe, hard carrying case and batteries
  • Display: Digital
  • Measuring Mode: Ultrasound
  • Thickness Range: 0.03" - 15.7" (0.65 mm - 400.0 mm)
  • Manufacturer Part Number: R7900
  • Able to gauge thickness measurement without requiring access to both sides of the test piece
  • Determines sample thickness by measuring the amount of time it takes for sound to traverse from the transducer through the material to the back end of a part and back
  • Calculates the data based on the speed of the sound through the tested sample
  • Capable of performing measurements on a wide range of material including metals, plastic, ceramics, composites, epoxies, glass, and other ultrasonic conductive materials
  • Zero function and sound velocity calibration
  • Two-point calibration
  • Coupling status indicator
  • Can be easily deployed, does not require laboratory conditions
  • Includes ultrasonic couplant gel, probe, hard carrying case and batteries
  • Display: Digital
  • Measuring Mode: Ultrasound
  • Thickness Range: 0.03" - 15.7" (0.65 mm - 400.0 mm)
  • Manufacturer Part Number: R7900

Sound Velocity Range 1000 to 9999 m/s (0.039 to 0.394 in/µs)
Measurement Speed 4 per second for a single point measurement
Memory 5 files, up to 100 values for each file (total of 500 logs)
Power Supply 2 x 1.5V AA batteries
Measurement Range 2 x 1.5V AA batteries
Frequency 5MHz
