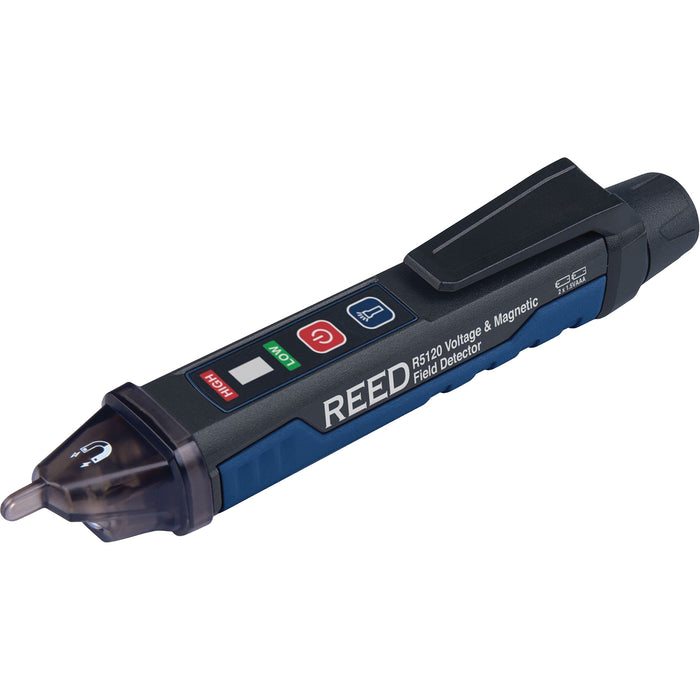

Non-Contact Voltage and Magnetic Field Detector, 24 VAC - 100 VAC/90 VAC - 1000 VAC, Light & Sound Alert
- AC voltage and magnetic field detector with built-in flashlight
- Check receptacles or insulated wire for presence of AC voltage
- Quickly determine the presence of magnetic fields to determine whether or not components are working properly
- Double insulated housing for increased safety
- Audible (buzzer) and visual (LED) indicators
- Built-in flashlight
- Pocket clip
- Auto shut-off
- Two voltage ranges allow it to detect both high (90 to 1000V) and low (24 to 1000V) AC voltage wiring
- Voltage Detection: 24 VAC - 100 VAC/90 VAC - 1000 VAC
- Alert Type: Light & Sound
- Manufacturer Part Number: R5120
- Frequency Range: 50 to 60Hz
- Power Supply: (2) AAA Batteries
- Overvoltage Category: CAT. IV 1000V
- Certification(s): CE, IP67, ETL (Conforms to UL STD 61010-1, 61010-2-030, Certified to CSA STD C22.2 No. 61010-1, 61010-2-030)
- Operating Temperature: CE, IP67, ETL (Conforms to UL STD 61010-1, 61010-2-030, Certified to CSA STD C22.2 No. 61010-1, 61010-2-030)
- Operating Humidity Range: 0 to 80%
- Maximum Operating Altitude: 6561' (2000m)
- Dimensions: 6.3" x 1" x 0.9" (160 x 25 x 22mm)
- Weight: 2.5 oz. (72g)
