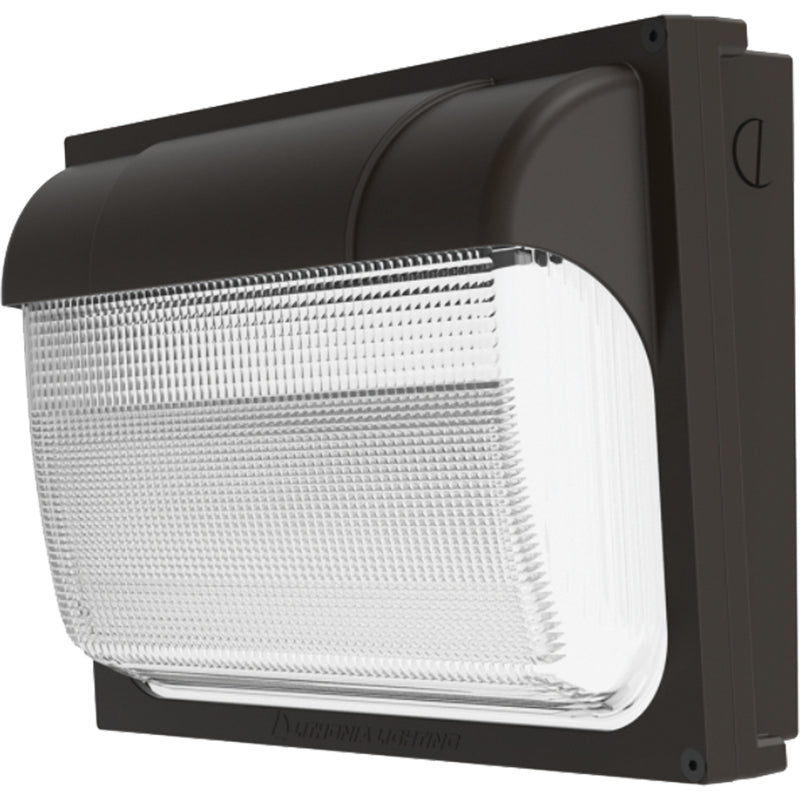

Contractor Select™ TWX ALO Adjustable Light Output Wall Pack, LED, 120 - 277 V, 54 W, 9" H x 13" W x 4.5" D
- Replaces 70W to 250W Metal Halide luminaires, providing energy savings
- Same footprint as a standard HID wall pack, to easily cover the stain
- Expected service life of more than 20 years
- Two-piece die-cast aluminum housing to optimize thermal management through conductive and convective cooling
- Door is hinged on the side and can be removed for easy installation
- Housing is completely sealed against moisture and environmental contaminants (IP65) and is suitable for the hose-down applications
- Exterior painted parts are protected by a zinc-infused super durable TGIC thermoset powder coat finish that provides superior resistance to corrosion and weathering
- Tightly controlled multi-stage process ensures a 3 mils thickness for a finish that can withstand extreme climate changes without cracking or peeling
- Advanced optical design uses both reflector and refractor technologies that work together to create superior illumination and further throw, getting the light where it is needed
- US-made borosilicate glass refractor is specifically designed to maximize light extraction and create a fully luminous luminaire for a better nighttime look
- Adjustable Light Output (ALO) feature allows the contractor to set the light output during installation to a level perfectly suited for the job site
- Light engine consists of high-efficacy LEDs mounted to housing to maximize heat dissipation and promote long-life (up to L81/100,000 hours at 25°C)
- Electronic driver has a power factor of >90%, THD <20%, and luminaire is 0-10V dimmable
- CSA certified to U.S. and Canadian standards, IP65 rated for outdoor applications, and rated for -40°C minimum ambient temperature
- Bulb Type: LED
- Voltage: 120 - 277 V
- Wattage: 54 W
- Overall Height: 9"
- Overall Width: 13"
- Overall Depth: 4.5"
- Manufacturer Part Number: 268TUM
- Housing Colour: Textured Dark Bronze
- Lumens: 1,450 - 6,950
- Weight: 11 lbs.
- Manufacturer's Warranty: 5 Year Limited
- CCT Rating: 5 Year Limited
