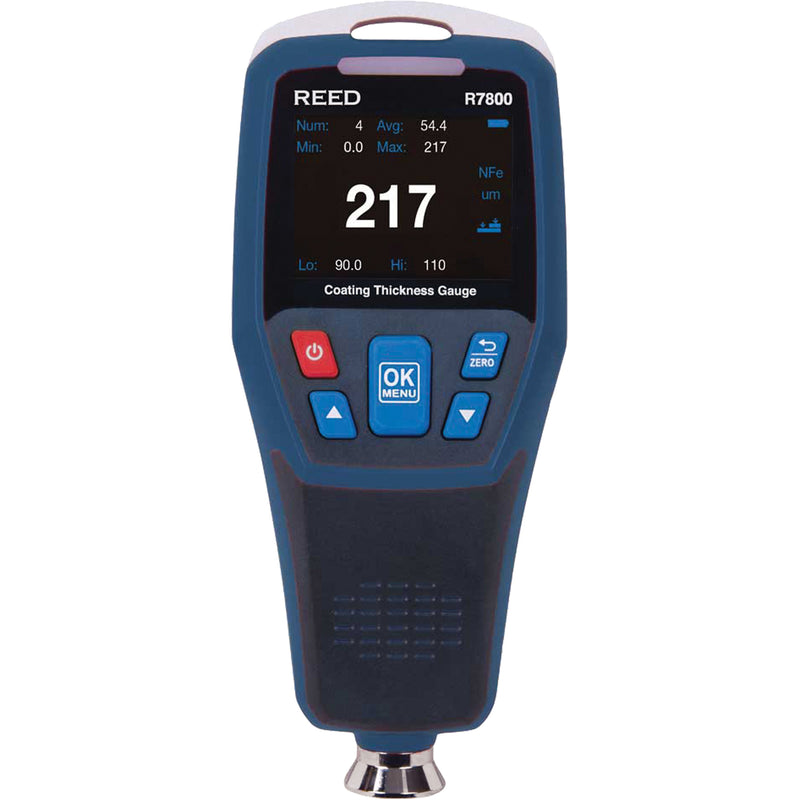

Coating Thickness Gauge
- Designed for non‐invasive coating thickness measurements
- Features zero or two point calibration, user adjustable high/low alarms, and a USB interface to further analyse results in the included software
- Automatically detects ferrous and non-ferrous substrates
- Easy-to-read colour LCD display
- 360° screen rotation allows users to view measured readings from any angle
- Durable gauge and probe construction
- Single or multi-point mode allows a user to set tolerances and quickly identify whether a coating passes or fails
- Tri-colour LEDs quickly indicate when measurements are below (red), above (yellow), or within set parameters (green)
- Internal memory stores up to 500 groups of data
- View stored data, charts or real-time measurement with software
- Low battery indication and auto shut off
- Includes: (1) Coating thickness gauge, (1) Ferrous substrate, (1) Non-ferrous substrate, (5) Reference films, (1) USB cable, (1) Wrist strap, (1) Sensor cover, (2) AA batteries, (1) Hard carrying case
- Display Type: Digital
- Measuring Range: 0 - 1250 µm (0.1 - 49.2mil)
- Manufacturer Part Number: R7800
- Accuracy: 0 to 1250 μm (±3% +1 μm), 0 to 49.21 mil (±3% +0.04 mil)
- Resolution: 0 to 99.9 μm (0.1 μm), 100 to 1250 μm (1 μm), 0 to 4.99 mil (0.01 mil), 5.0 to 49.2 mil (0.1 mil)
- Measurement Modes: Single & Continuous
- Minimum Curvature Radius: 5 mm (196.85 mil)
- Minimum Substrate Thickness: 5 mm (196.85 mil)
- Certification: CE
- Refresh Rate: 0.5 Seconds on Continuous Mode
- Dimensions: 5.9" x 2.6" x 1.38" (152 mm x 65 mm x 35 mm)
- Weight: 6.35 oz.
