30/30® High-Capacity Pleated Panel Filters

Product Category: Air Filter
Checking inventory...

by Camfil
SKU EA170
Original price $0.00 - Original price $0.00
Original price $0.00
$15.12
$15.12 - $15.12
Current price $15.12
Minimum quantity allowed is .
Maximum quantity allowed is .
The product can be bought in quantity increments of .

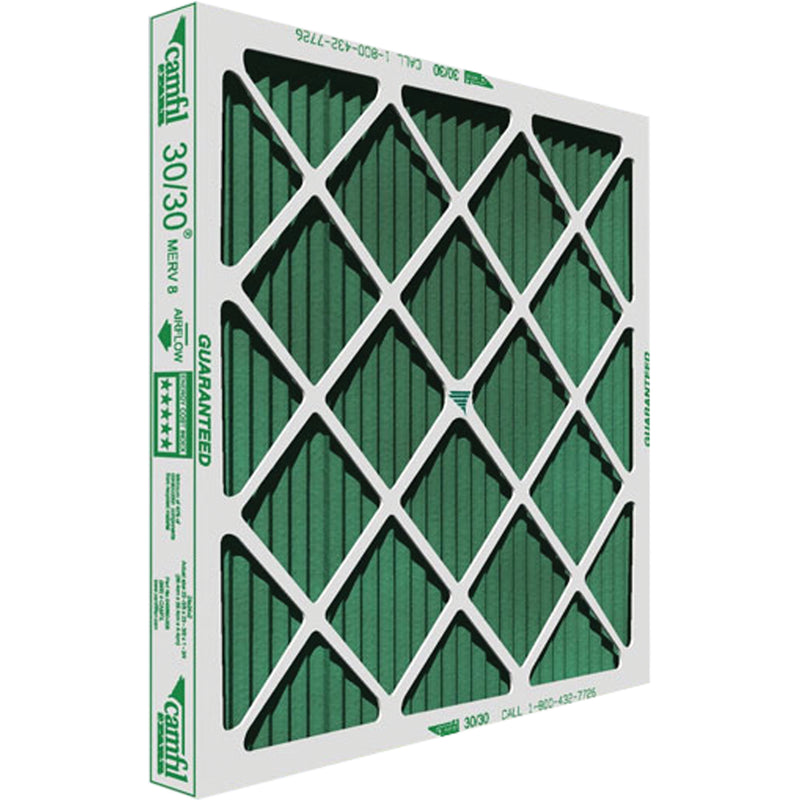

Product: 30/30® High-Capacity Pleated Panel Filters EA170
  • High capacity pleated panel filter available in 1", 2" or 4" depths
  • A welded wire grid to maintain the radial pleat and eliminates distortion of the media pack even under turbulent or high airflow conditions
  • Exclusive MERV 8 Media, blended from cotton and polyester fibres, providing consistent dirt removal efficiency throughout the life of the filter
  • The 30/30 meets today's medical facility requirements
  • A low initial and maintained low resistance to airflow, over the life of the filter that saves energy dollars
  • A high wet-strength beverage board frame for maintained filter rigidity in any application
  • Maximum continuous operating temperature of 200ºF (93ºC)
  • Proprietary blend of cotton and synthetic fibres in a uniform lofted media blanket; ; Efficiency: Value of 8 for MERV and MERV-A when evaluated under ASHRAE Testing Standard 52.2.; ; Typical applications: Pre-filters to higher efficiency filters, stand-alone filter for rooftops, split systems, free-standing units and package systems and air handlers. Ideal for commercial, industrial, institutional or any other application where the ultimate level of protection of equipment and indoor air quality is a concern.; ; Note: Initial resistance to airflow (inches w.g.) Other sizes also available.
  • Width: 16"
  • Depth: 1"
  • Height: 20"
  • MERV Rating: 8
  • Filter Type: Box
  • Manufacturer Part Number: 054862001
  • CFM Medium: 390
  • CFM High: 780
  • Resistance Medium: 0.11
  • Resistance High: 0.25
  • Media Area sq.ft.: 0.25
  • Pleats/foot: 16
