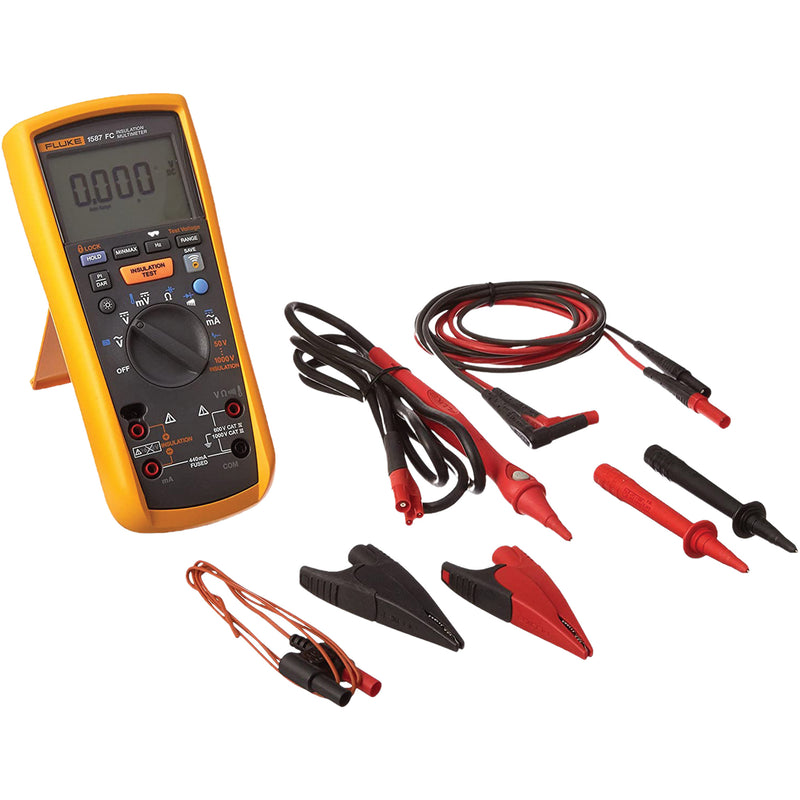

1587 FC Insulation Multimeter
- Keep yourself out of harm's way by monitoring your test measurements remotely
- Fluke Connect® saves measurements to your phone or the cloud and eliminates the need to write down results
- PI/DAR timed ratio tests with TrendIt™ graphs to identify moisture and contaminated insulation problems faster
- Temperature compensation to establish accurate baselines and relevant historical comparisons
- Includes live circuit detection to prevent insulation test if voltage >30 V is detected
- Incorporates VFD low-pass filter for accurate variable frequency motor drive measurements
- Includes auto-discharge of capacitive voltage for added user protection
- Measures AC/DC voltage, DC millivolts, AC/DC milliamps, resistance, and continuity
- Includes capacitance, diode test, temperature, min/max, frequency measurements and insulation test smoothing reading
- Includes: Remote probe, Test leads, Alligator clips, K-type thermocouple, Hard case, User documentation
- Max. Voltage AC: 1000 V
- Max. Voltage DC: 1000 V
- Max. Amps AC: 400 mA
- Max. Amps DC: 400 mA
- Manufacturer Part Number: 1587 FC
- Resistance Range: 600 Ω - 50 MΩ
- Frequency Range: 99.99 Hz - 99.99 kHz
- Capacitance Range: 1000 nF - 9999 μF
- Temperature Range: -40 - 537°C (-40 - 998°F)
- Radio Frequency: -40 - 537°C (-40 - 998°F)
- Batteries Required: (4) AA
- Dimensions: 5 x 10 x 20.3 cm (1.97 x 3.94 x 8")
- Weight: 550 g (1.2 lbs.)
- Manufacturer's Warranty: 3 Years
