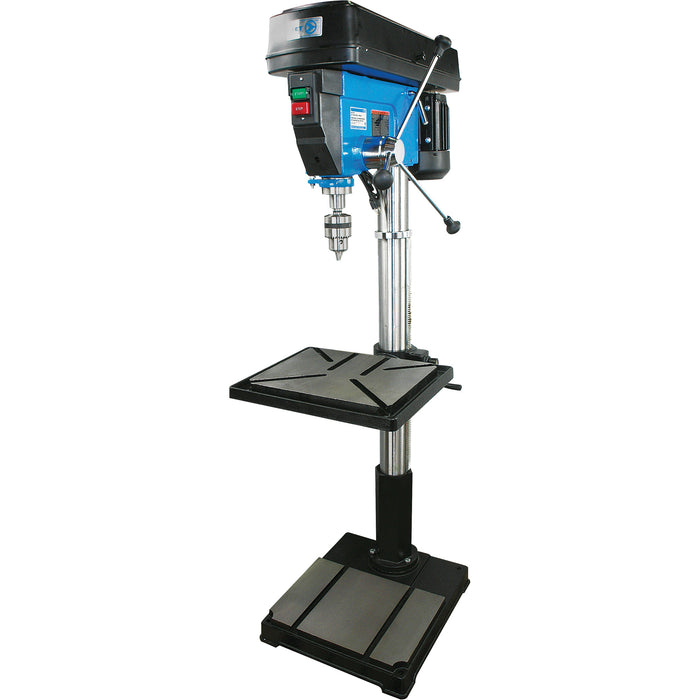

JDP-22F Floor Drill Press, 22", 3/4" Chuck, 4200 RPM
| Montreal | Edmonton | Vancouver |
|---|---|---|
- Worktable with quick-release clamp rotates and tilts to 45° right and left
- Slots in worktable and base permit easy clamping of the workpiece
- Full 22" swing for easy drilling of larger work pieces
- Positive depth setting mechanism uses a threaded rod and two locknuts for accuracy
- Drill chuck and key standard equipment
- Fully hinged belt and pulley cover and quick adjust motor mount permit fast changes of spindle speed
- 12-speed capability allows for a broad assortment of drilling applications
- Built-in work lamp with separate switch (use outdoor rated bulb, not included)
- Safety on/off switch with removable lock key
- Swing: 22"
- Chuck Size: 3/4"
- No Load Speed: 4200 RPM
- Table Dimensions: 16-1/2" W x 18-3/4" L x 69-1/4" H
- Overall Width: 16-1/2"
- Overall Length: 18-3/4"
- Overall Height: 69-1/4"
- Manufacturer Part Number: 200357
- Amperage Rating: 5/10 A
- Base Dimensions: 19-5/8" x 22-1/2"
- Column Diameter: 3-5/8"
- Horsepower: 1-1/2 HP
- Number of Spindle Speeds: 1-1/2 HP
- Spindle Taper: MT3
- Spindle to Table Distance: 29"
- Spindle Travel: 4-1/2"
- Table Tilt: 0 to 45°
Shipping Dimensions
Cube: 60.99600 cu-ft
Weight: 374.00000 lbs
Length: 2.99000'
Width: 3.40000'
Height: 6.00000'
